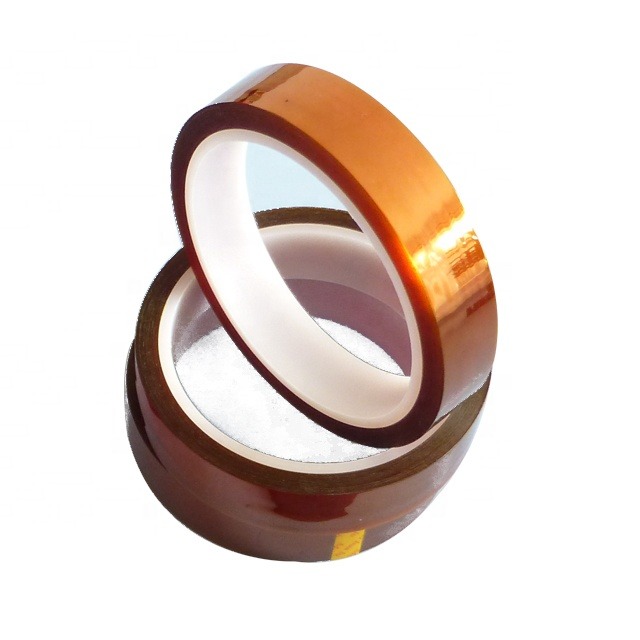

Kapton 1mil esd high temperature amber tape

1000.0 Rolls
MOQ
Kapton 1mil esd high temperature amber tape
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HC-6230
Type: Insulation Tape
Material: Polyimide Film
Application: High Temperature
Rated Voltage: 5KV
Tensile Strength: 110N/25MM
Adhesive: Silicone
Thinkness: 0.06mm
Color: Amber
Adhesion Strength: 5N
Temperature Resistance: 260C
Certificate: ROHS
Width: 6mm
Length: 33m
Basic Infomation
Certification: ROHS
Model Number: HC-6230
Payment & Shipping Terms
Packaging Details: shrinkage, then in box, then in Carton
Product Description
Product Display
Products Description
Product Description：
The anti static (ESD) polyimide tape is with the polyimide film which has been ESD treated as the basic carrier, and coated with pressure sensitive silicone adhesive on one side. The surface resistivity of the back side of the tape is less than 109. so that the electrical parts will not be damaged because of the static voltage resulted from the tape.

Features and Appliance:
In electrical industry, it can be applied in high-class H insulation motor and transformer coil insulation wrapping, fixing of the end of high temperature coil, protection of resistance thermometer sensor, entanglement of capacitance and wire and other insulation bonding and antistatic in high-temperature working conditions. In circuit board manufacturing industry, it can be used for electronic paste protection, especially suitable for SMT temperature protection, electronic switches, PCB golden finger panels, electronic transformers, relays and other electronic components requiring high temperature and moisture resistance. High temperature spray paint of metallic materials, surface coating masking protection of sand blasting, after high temperature spray paint baking, it can be easy peeled off without leaving any residue. It features high temperature resistance, high tensile strength, excellent chemical resistance, no residue left, in line with ROHS(halogen free).
ITEM
DATA
Backing
Polyimide film
Adhesive
Pressure sensitive silicone
Thinkness(mm)
0.06mm±0.005mm
Width(mm)
Within 500mm±0.5mm
Length(m)
33±0.5m
Adhesion(N/25mm)
≥5
Tensil strength(N/25mm)
≥110
Elongation（%）
≥40
Temperature resistance(℃)
260 within half an hour
Surface Resistance（Ω）
10^5~10^9
Factory Photo
Why Choose Us
Since established, the company always adheres to the principle of talent oriented and honest business, and it combines the foreign advanced information technology, management methods , business experiences with the reality of domestic enterprises to help enterprises to improve management level and production capacity. In recent years, the company implements 6S on site management, constantly improves the working environment, and raises the level of comprehensive management. In order to strength the competitiveness in fierce market competition, and keep the stable development, the company will continue to create a good working atmosphere, build a cultural core value system, constantly enhance comprehensive strength, and cultivate high-quality teams.
“Unity, innovation, pragmatism, endeavour” is the company's unswerving pursuit. It will always adhere to the business purposes "quality first, customer first, revitalize on quality, win on excellence". It will make unremitting efforts to become the pioneer in adhesive tape industry.
